Reveni Labs Autocollimator

$700 CAD (~$502 USD)

Place Deposit Here

Features:

  • 243mm f9.5 AR-coated achromatic doublet objective

  • Compact size - 300mm (12”) overall length, 450g (1lb) weight

  • 10x widefield eyepiece

  • Brass-core aluminum helicoid

  • Aluminum and MJF nylon construction

  • Custom siemens star target

  • 1W green LED with USB-C connector - can be wall adapter or battery pack powered

  • Arca swiss compatible mounting plate with 1/4-20 brass insert

Siemens Star

The siemens star target is a custom-made metallized glass plate with an extremely accurate pattern of sections, shrinking to only 3um (0.0001”) at the centre. The projected reflection of the star can be observed on a first-surface mirror or directly on film placed at the film plane of the camera.

Flexible Mounting Options (Not Included)

Small Tripod

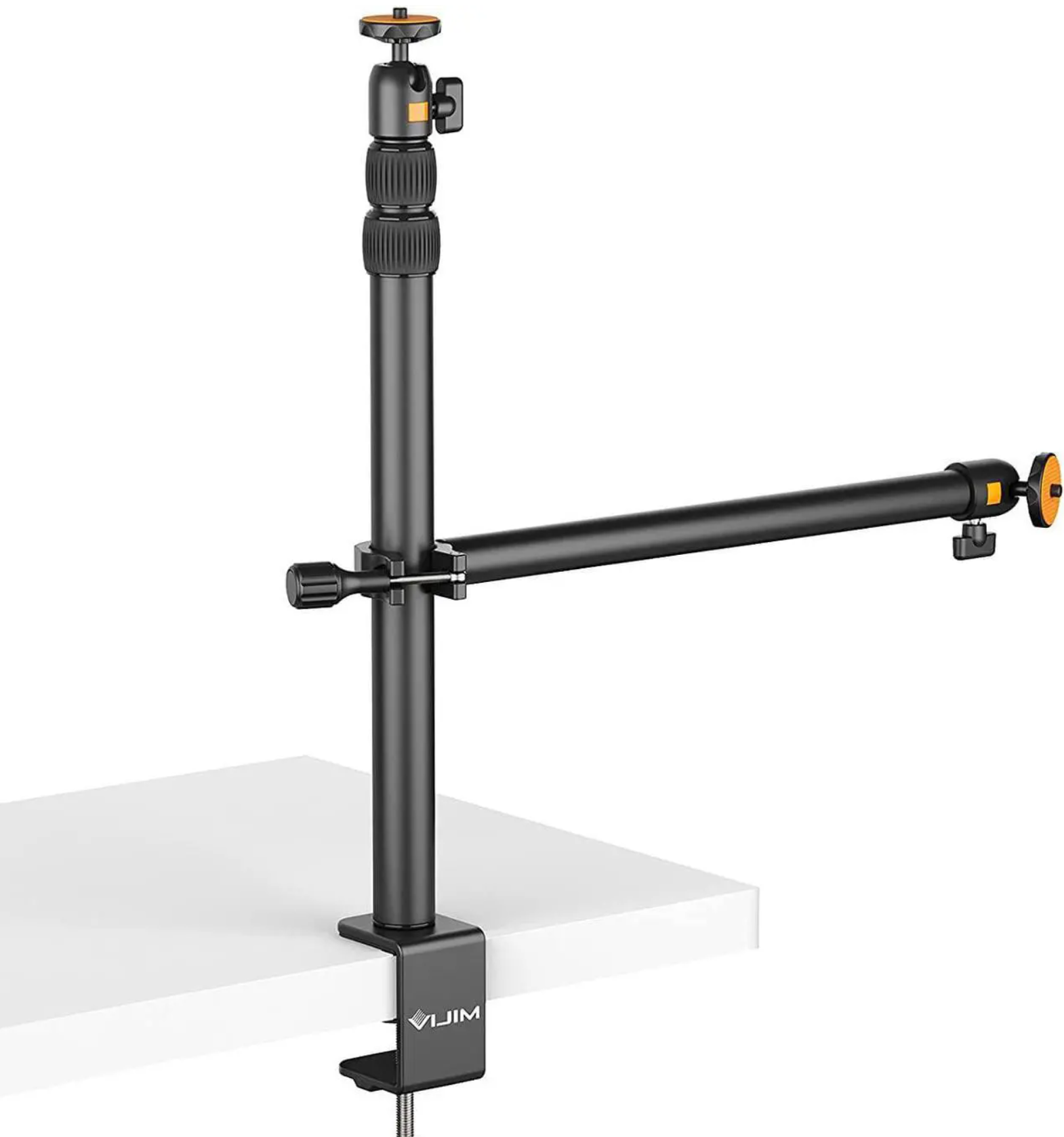

Table Clamp Rigid Arm

Copy Stand

Production Plan

October 2025 - Accept a minimum of 20 deposits

January 2026 - Order Parts

February 2026 - Receive Parts, begin in house-processing and assembly

March 2026 - Shipping

Estimated Shipping Costs

Shipping costs by DHL Express are estimated to be:

Canada - $20 CAD

USA - $44 CAD (product qualifies as tariff-free)

Europe/EU - $70 CAD

Rest of world - $95 CAD
