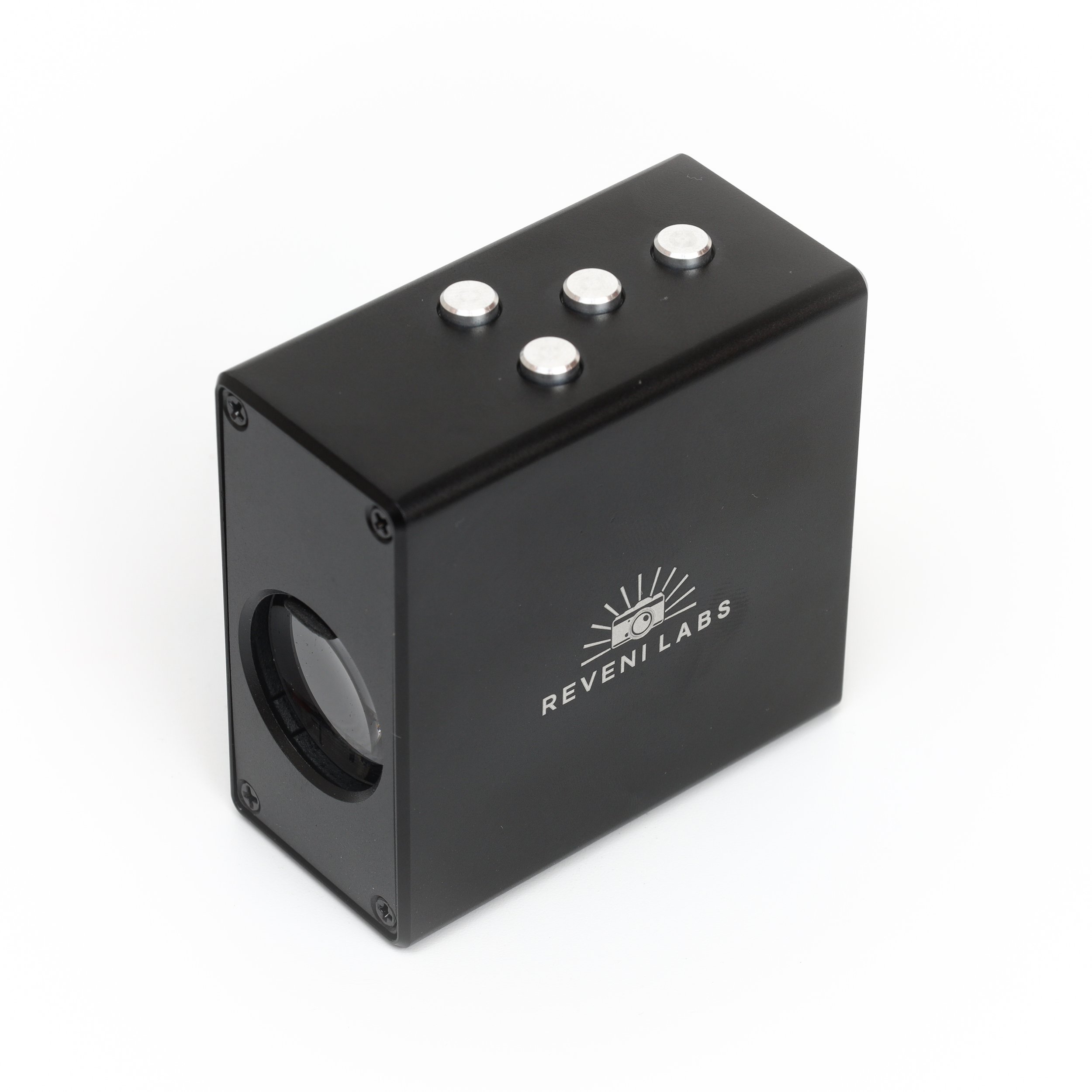

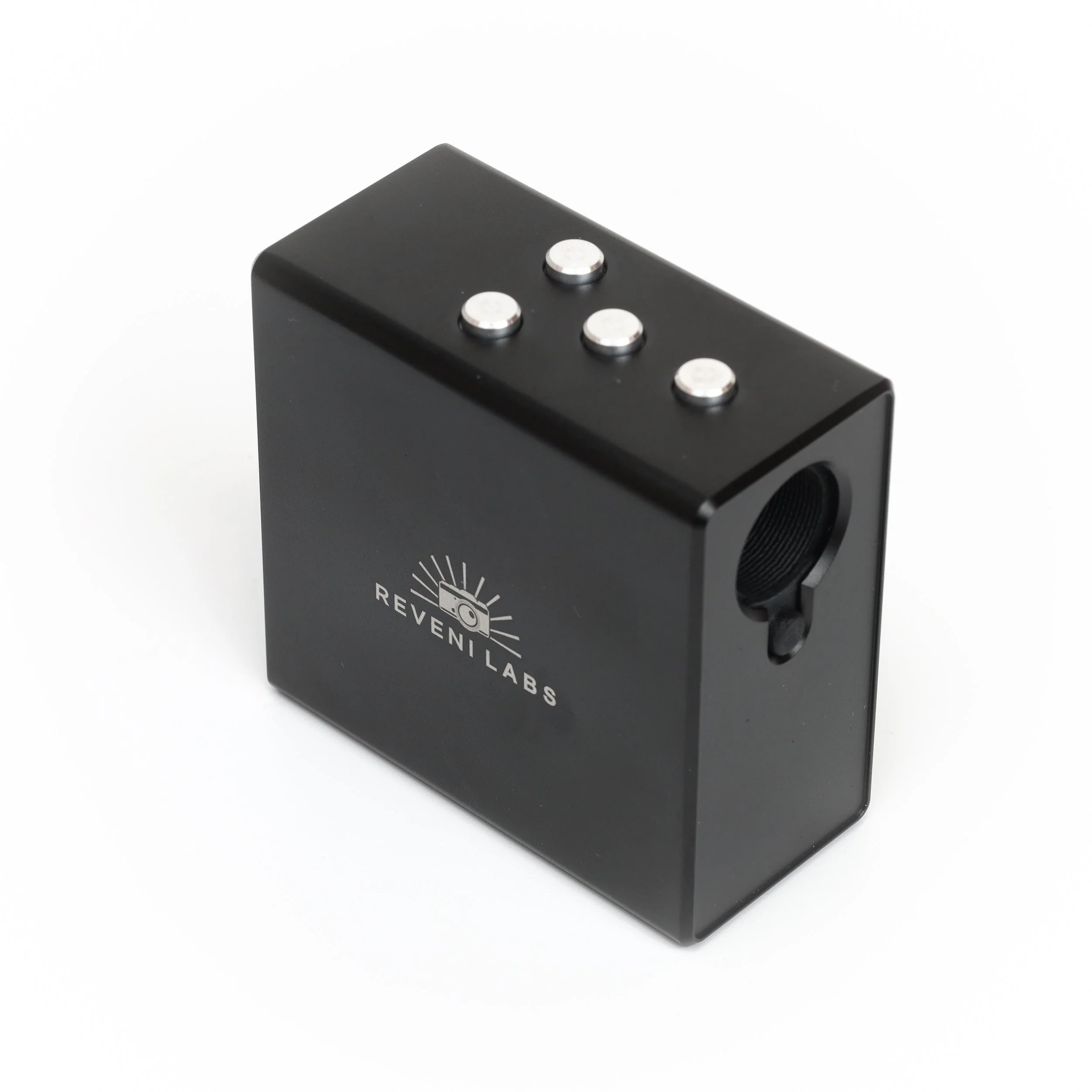

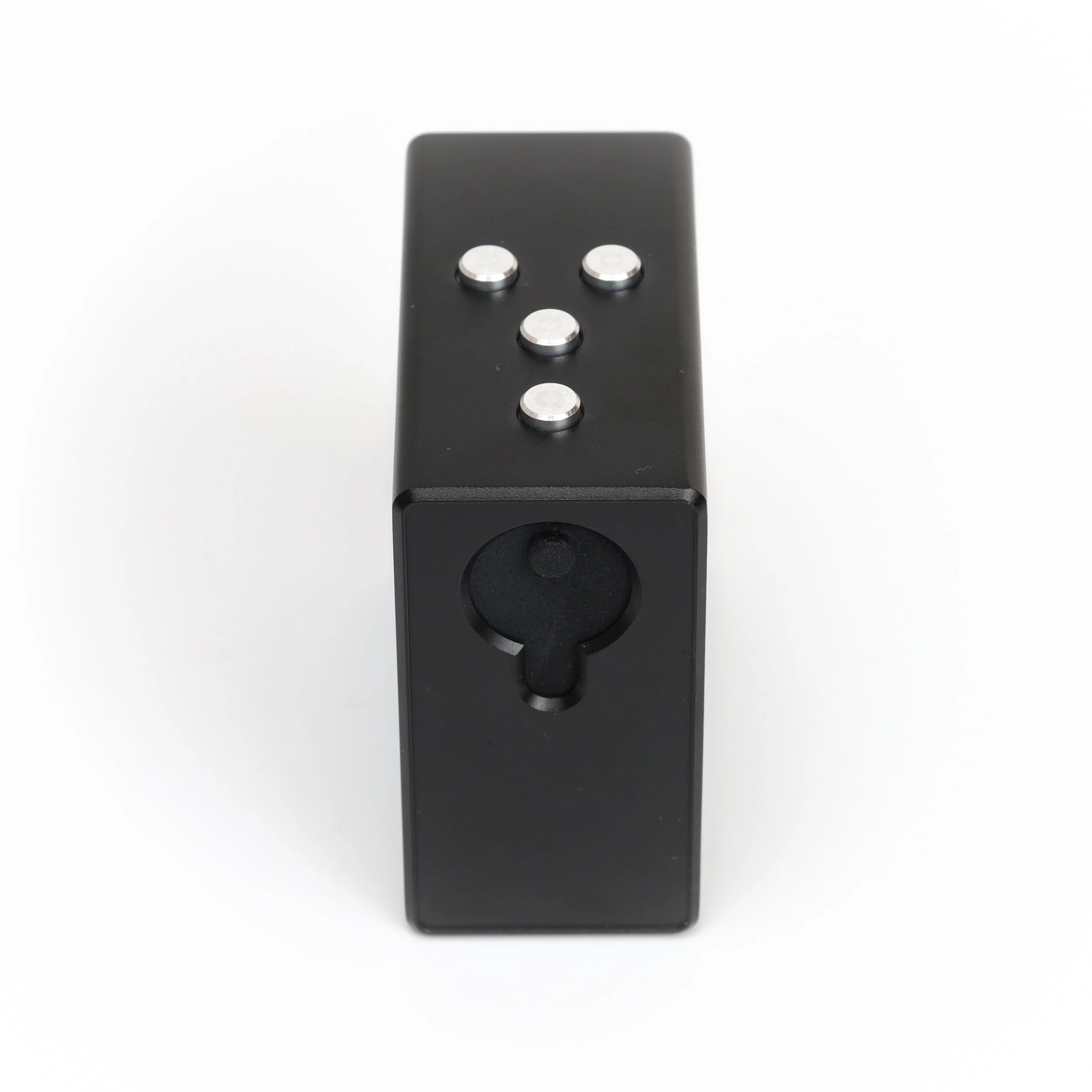

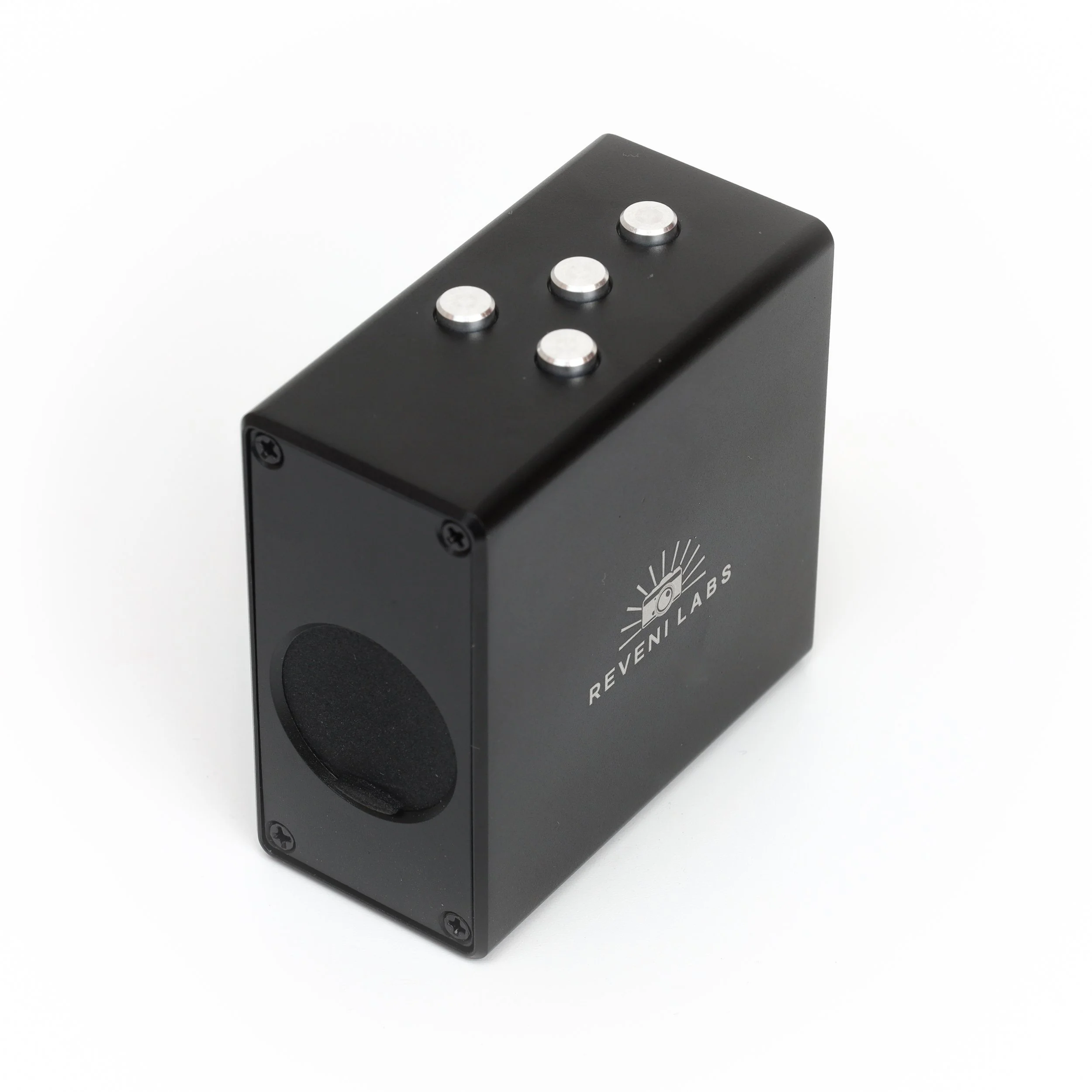

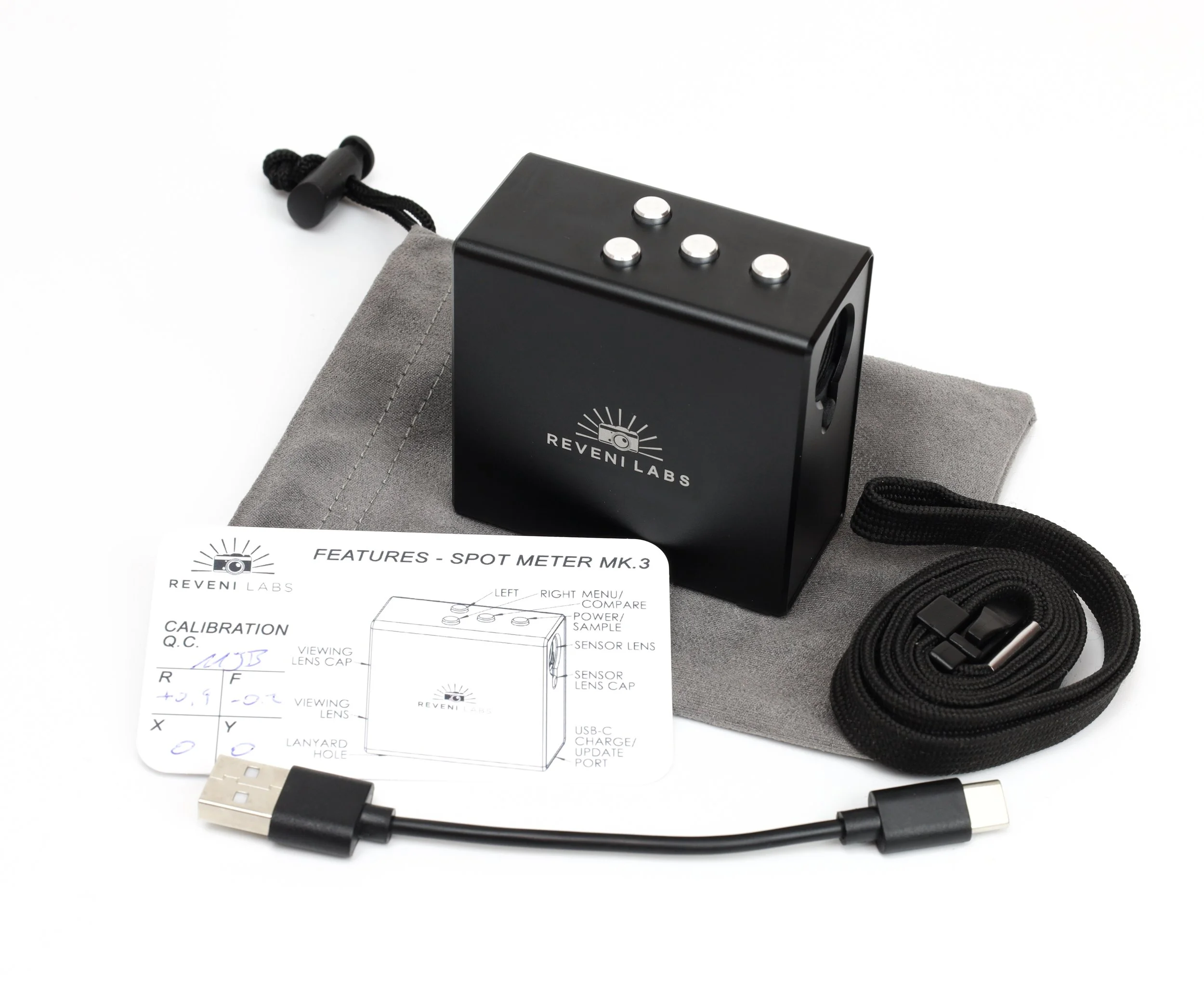

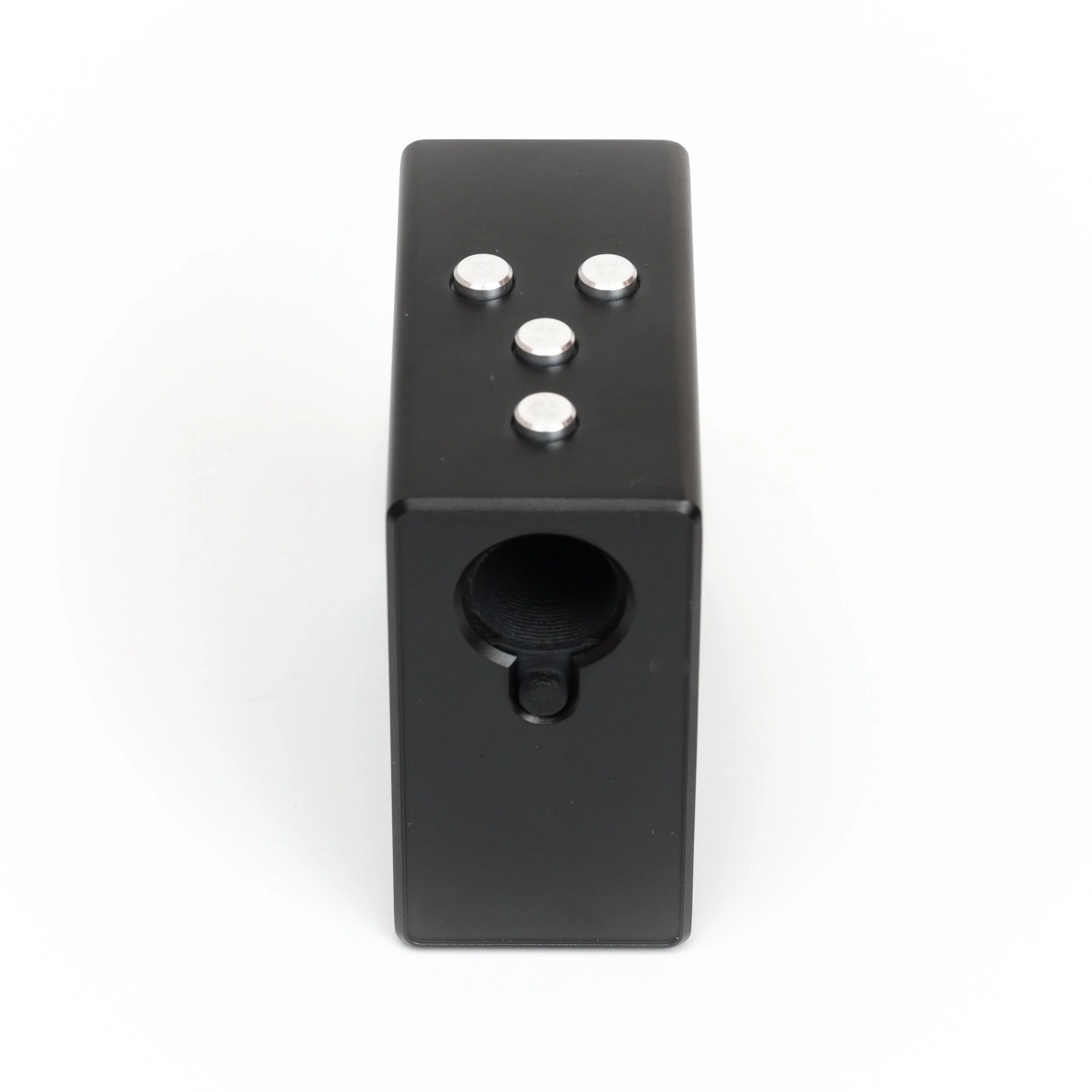

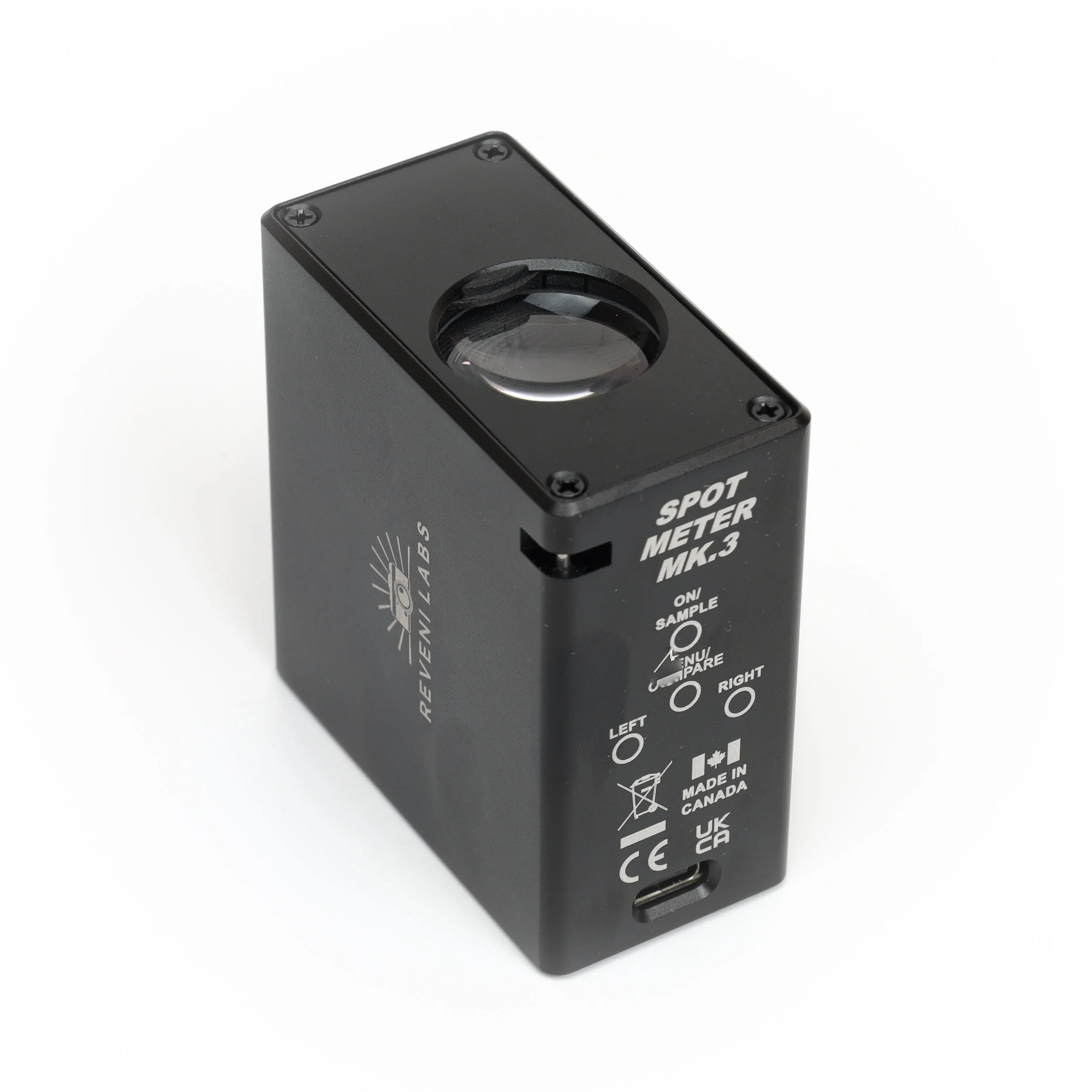

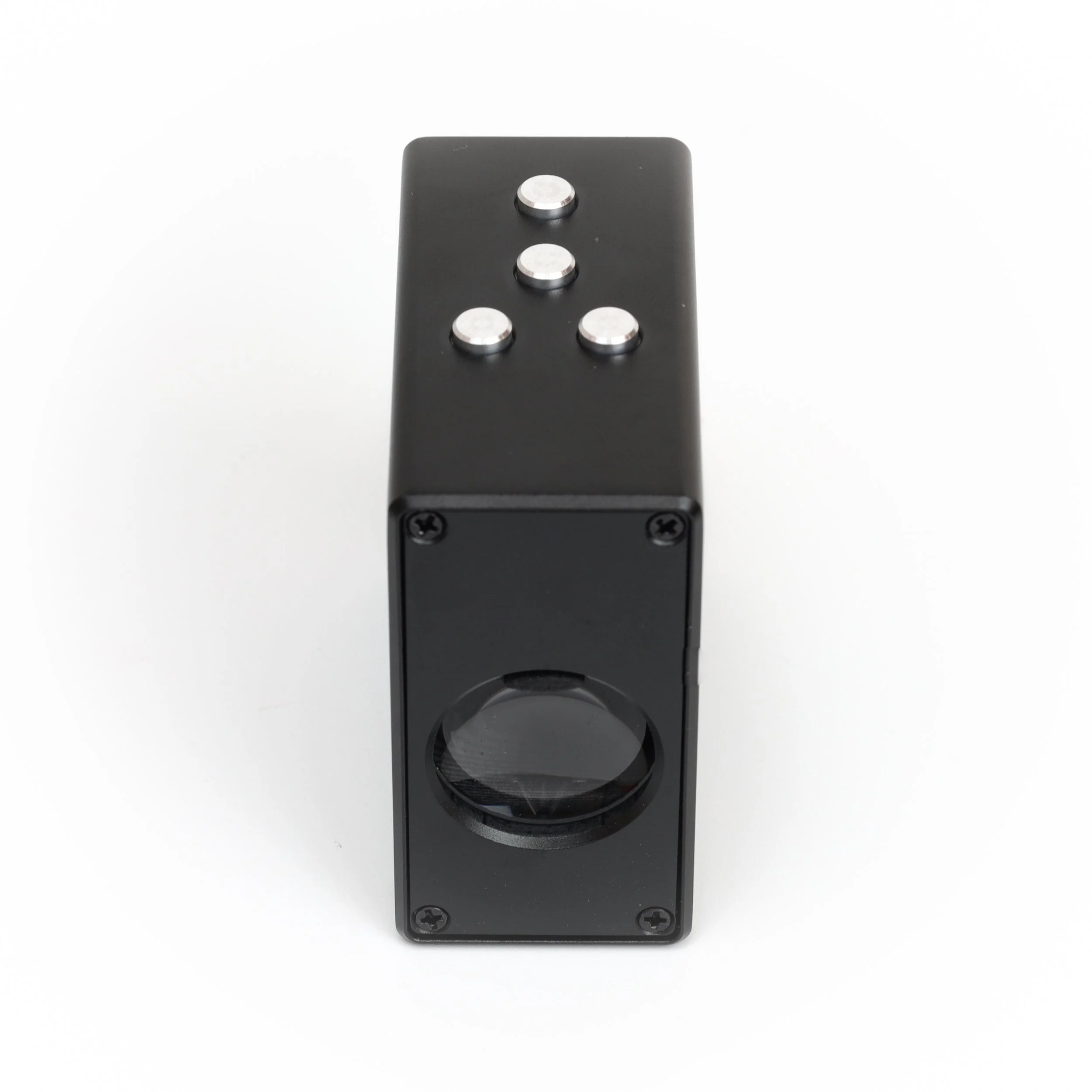

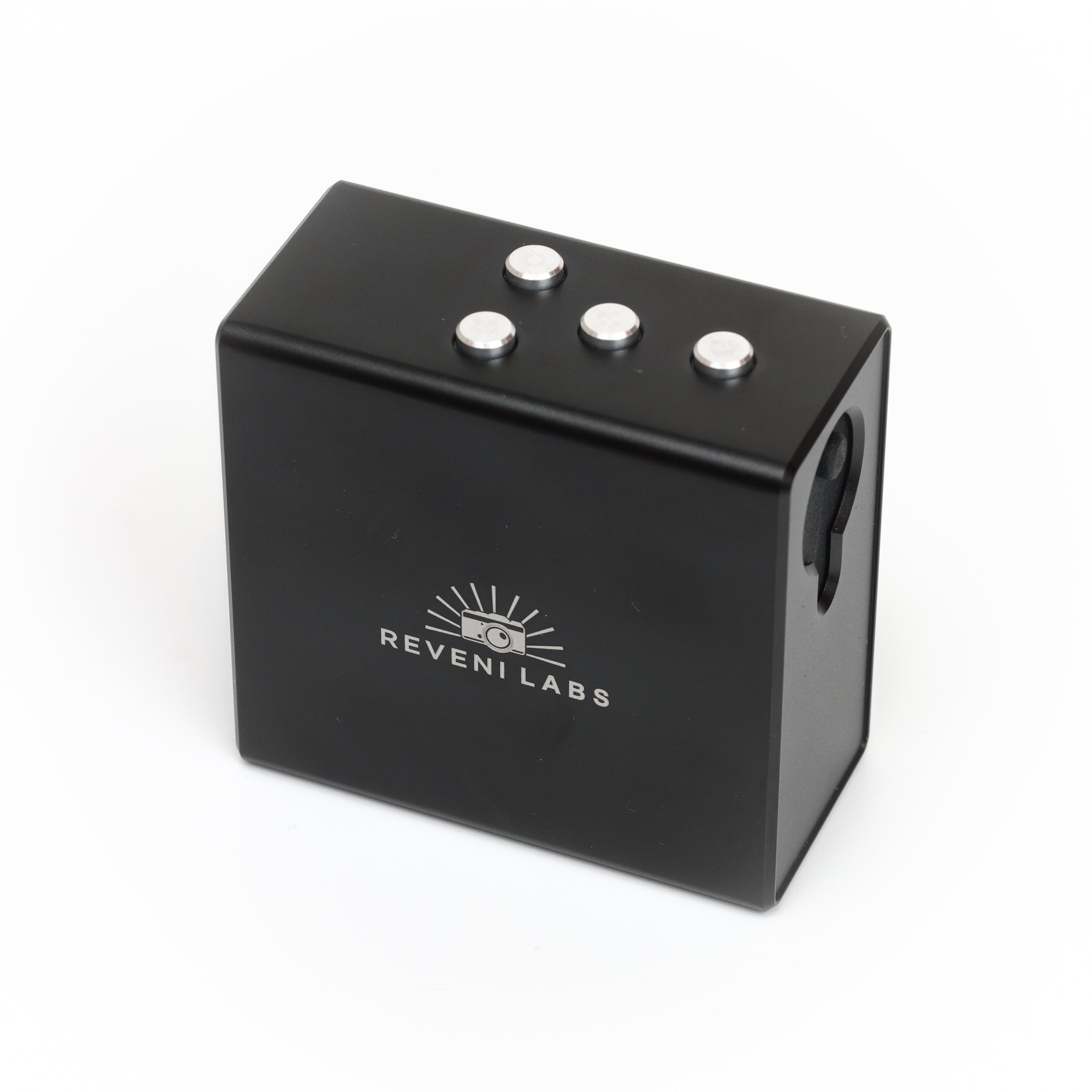

REVENI LABS SPOT METER MK.3
A small, lightweight spot meter with a novel aiming system and powerful features
Click Here to Order
Key Features
· Spot metering (~1 degree)
· Bright internal full colour LCD

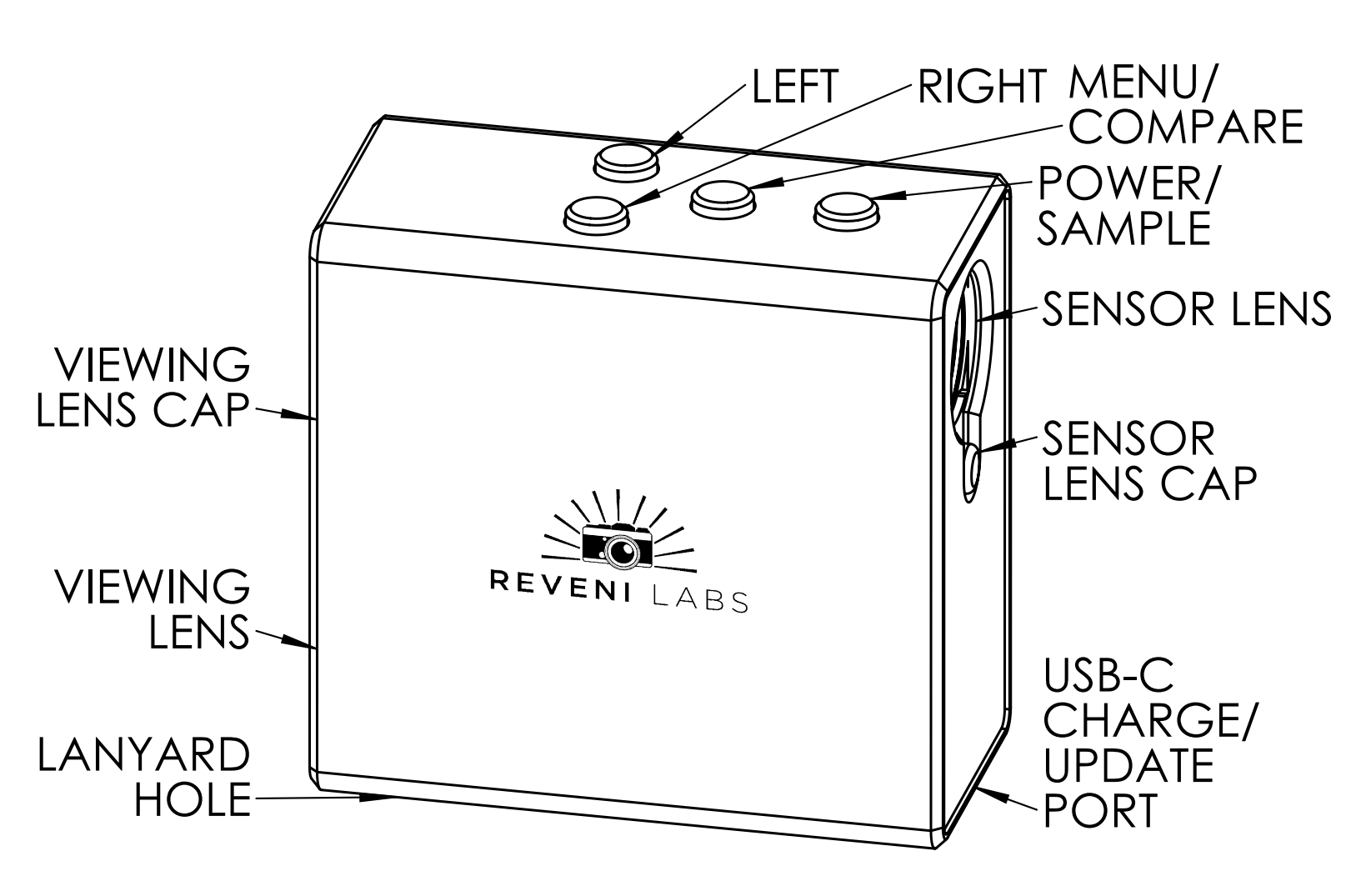

· Simple controls and menu
· Single, 2-spot average, Zone, Precision Method, Cine, and Flash metering modes
· Aperture or Shutter priority
· Exposure compensation in 1/3 stops (-3 to +3 stop range)
· Internal NiMH rechargeable battery

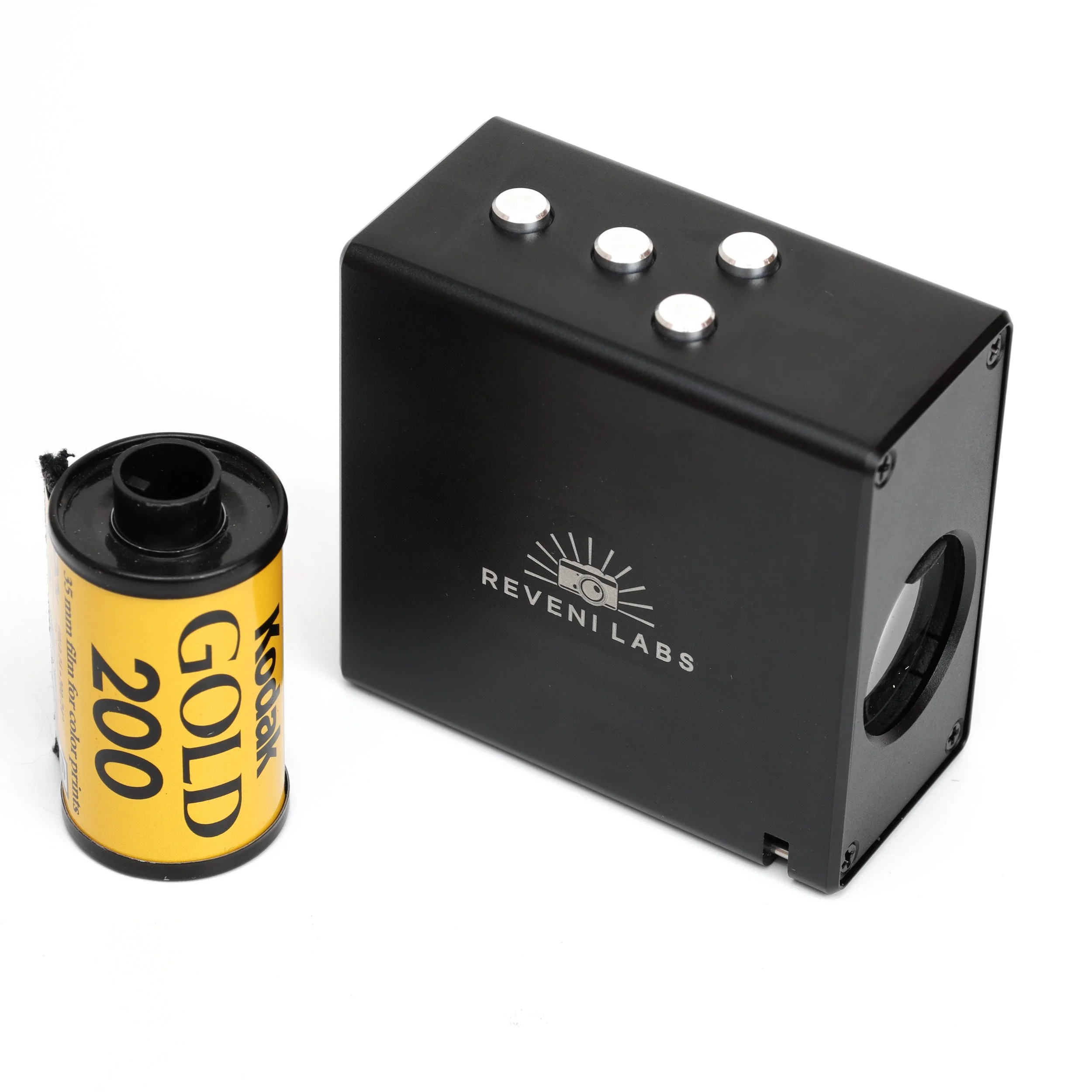

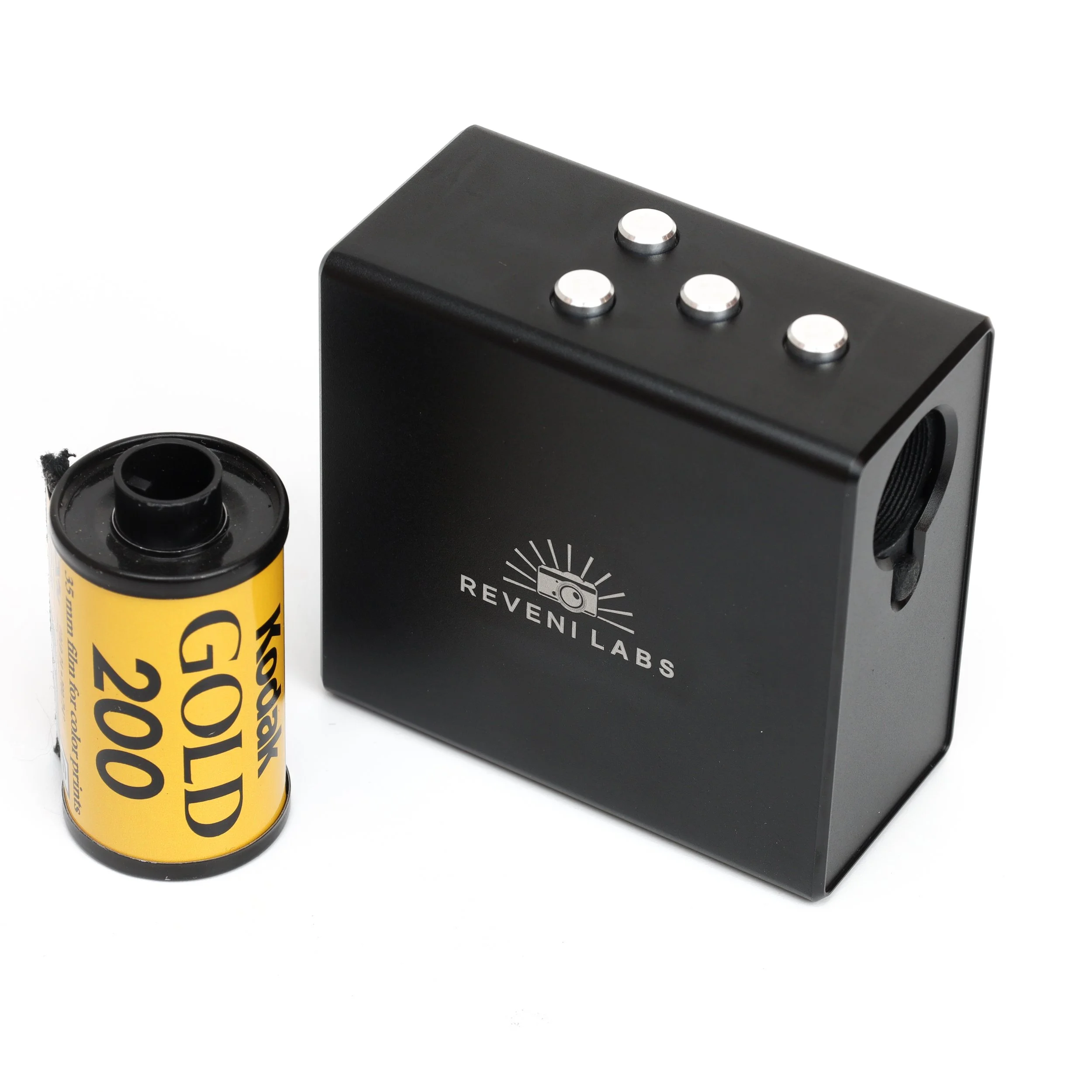

· Dimensions: 2.55"(65) L x 1.26"(32) W x 2.44"(62) H inches(mm)
· Weight: 130g
Technical Data
· Shutter speed range: 1hr – 1/8000th sec in 1/3 stop increments
· Aperture range - f0.7 – f1024 in 1/3 stop increments
· Film ISO range - ISO 1 – ISO 1024000 in 1/3 stop increments
· EV Range - EV 0.5 to EV20 in 0.1EV increments (@ISO 100)

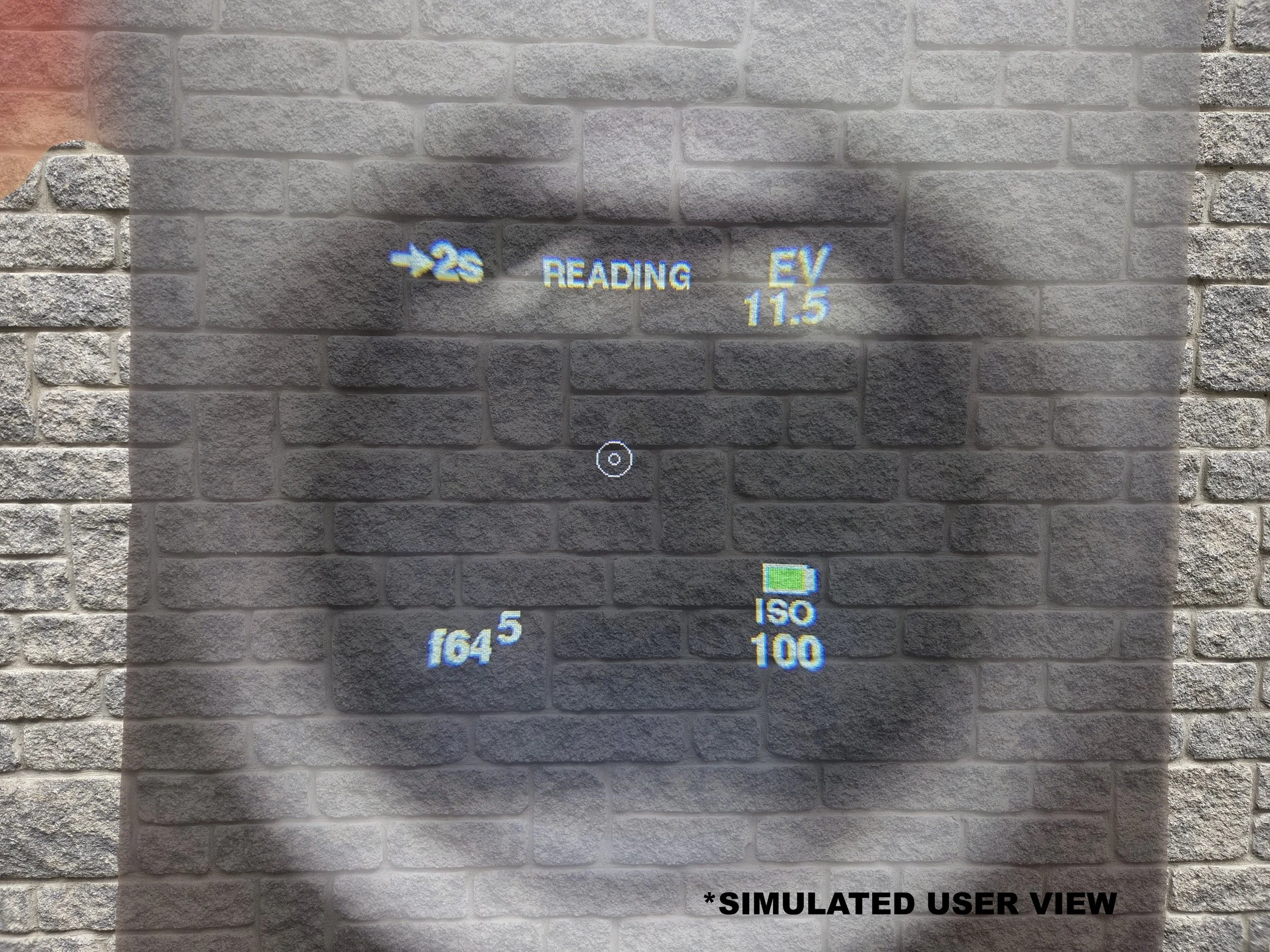

Single Reading
READ
Press and hold the POWER/SAMPLE button to take a continuous reading of the scene
LOCK
Release the POWER/SAMPLE button to lock in the current reading
Press the LEFT and RIGHT buttons to adjust your aperture/shutter speed combinations
COMPARE
Press and hold the MENU/COMPARE button to get a relative EV reading against other parts of your scene
2-Spot Average
READ SHADOW
Get a reading from the darkest shadow that you want to capture detail in
READ HIGHLIGHT
Get a reading from the brightest highlight you want to capture detail in
AVERAGE
The Reveni Labs Spot Meter automatically calculates the middle grey EV for the scene and displays the shutter/aperture combination required.
COMPARE
Press and hold the MENU/COMPARE button to compare the calculated middle grey EV with various parts of the scene to confirm
Zone System Method
PICK TONE
Select a tone from the scene that you wish to use as the zone reference point
ASSIGN ZONE
Select which Zone the selected tone should fall into
COMPUTE
The Reveni Labs Spot Meter automatically calculates the Zone V value for the scene and displays the shutter/aperture combination required.
COMPARE
Press and hold the MENU/COMPARE button to compare other tones in the scene and see in real-time which Zone they fall into (based on the selection from steps 1-2)
Nick Carver’s Precision Metering Method
Developed in conjunction with large format photographer and photography teacher Nick Carver based on his Precision Method to Manual Metering, which he teaches in his online course. This mode also allows for customizable film latitude.
PICK TONE
Pick a tone from the scene, the raw EV brightness is displayed as a guide
PLACE TONE
Use the LEFT/RIGHT buttons to select a descriptor for the tone from “TEXTURELESS BLACK” to “TEXTURELESS WHITE” with 10 choices in between
COMPUTE
The Reveni Labs Spot Meter automatically calculates the middle grey EV for the scene and displays the shutter/aperture combination required.
COMPARE
Press and hold the MENU/COMPARE button to compare the calculated middle grey EV with various parts of the scene to confirm. The meter displays the appropriate descriptor in real time, allowing you to confirm your original descriptor choice was accurate
Cine Mode
Meter for motion picture cameras, where the shutter speed is read out as a framerate and shutter angle.
FRAMERATE
Select your framerate and shutter angle and the meter will calculate the aperture required
SHUTTER ANGLE
Select your framerate and shutter angle and the meter will calculate the aperture required
FLASH METERING
New to the Spot Meter Mk.3, reflective flash metering
READY
Press and hold the power/sample button to ready the meter for the flash. Aim it at the subject area
FLASH DETECTED
When the flash is detected, a discharge curve and duration times will be displayed

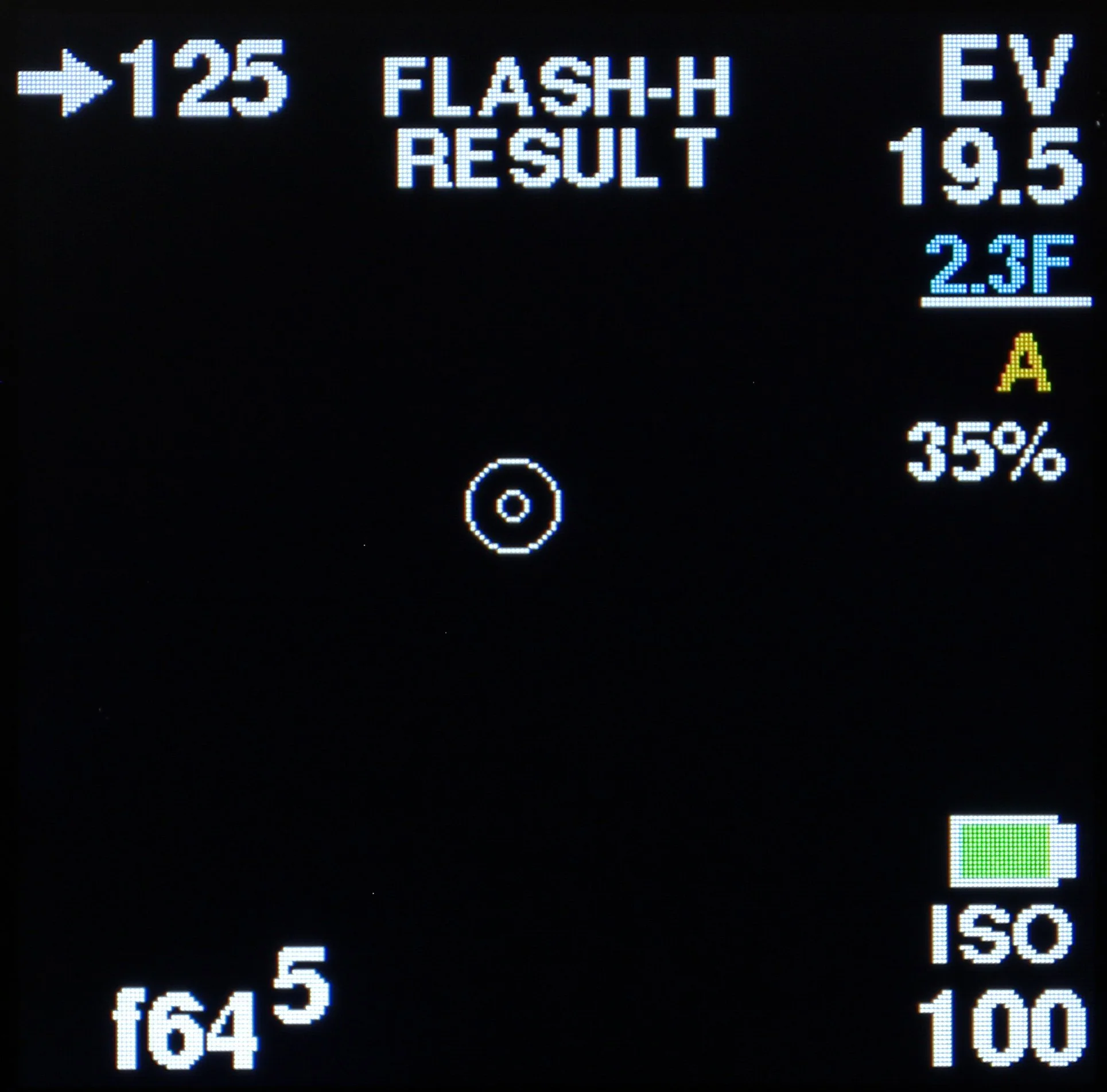

RESULT
Release the power/sample button to see the results, including the flash-to-ambient ratio
HIGH SPEED SYNC
Use HSS mode on your camera for faster than sync shutter speeds
