Reveni Labs ALTO

$375 CAD (~$270 USD)

ORDER HERE

A must-have for UV/blue sensitive alternative process work. Integrating meter functionality lets you expose using sunlight with high precision.

No more guessing. Establish the exposure baseline for your materials one time and repeat the exposure precisely regardless of changing lighting conditions

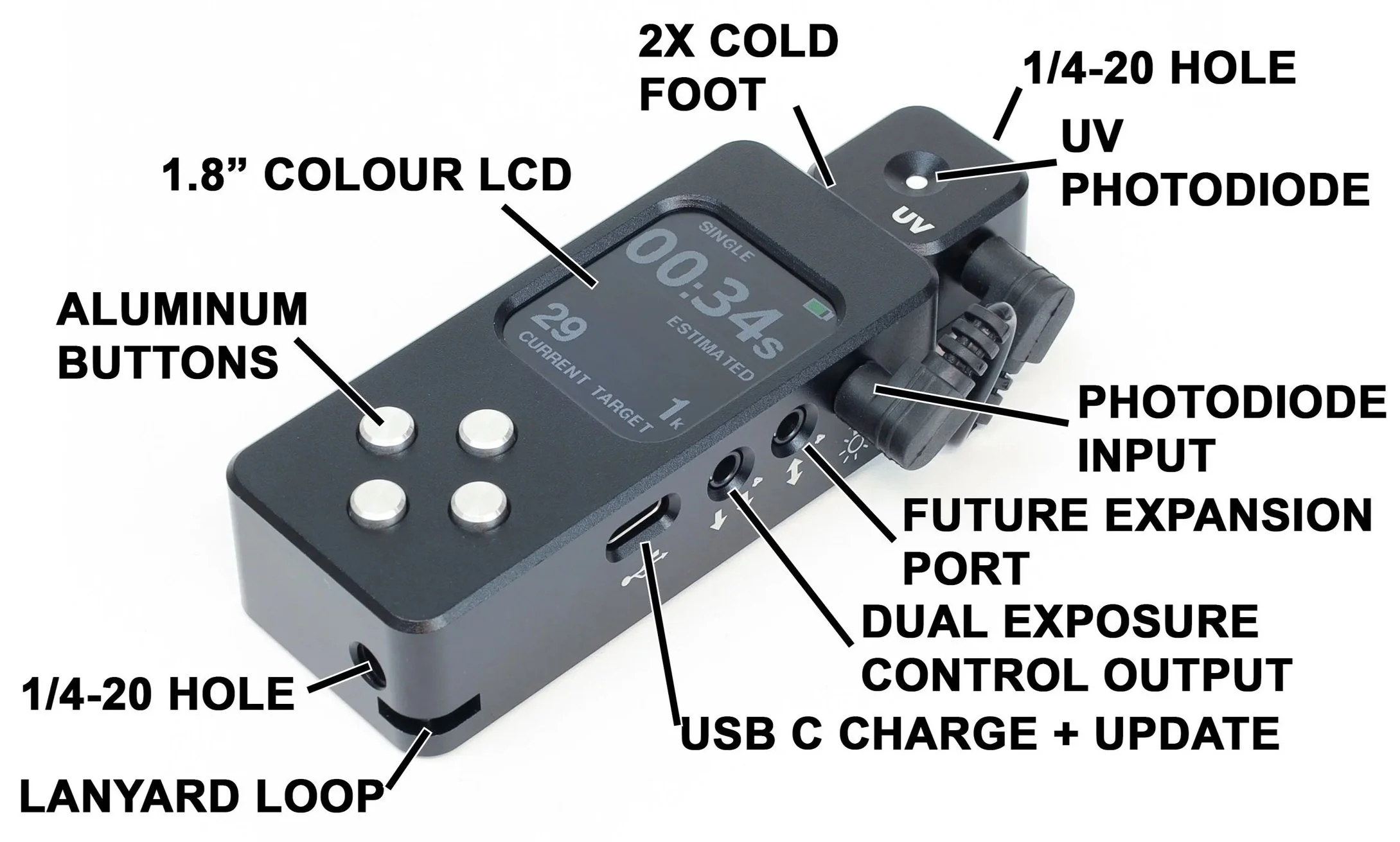

Features

  • Incident and reflective UV metering

  • Aluminum construction

  • 1.8” full colour LCD

  • Detachable sensor for on-camera or in-process metering

  • Single or Integrated reading modes

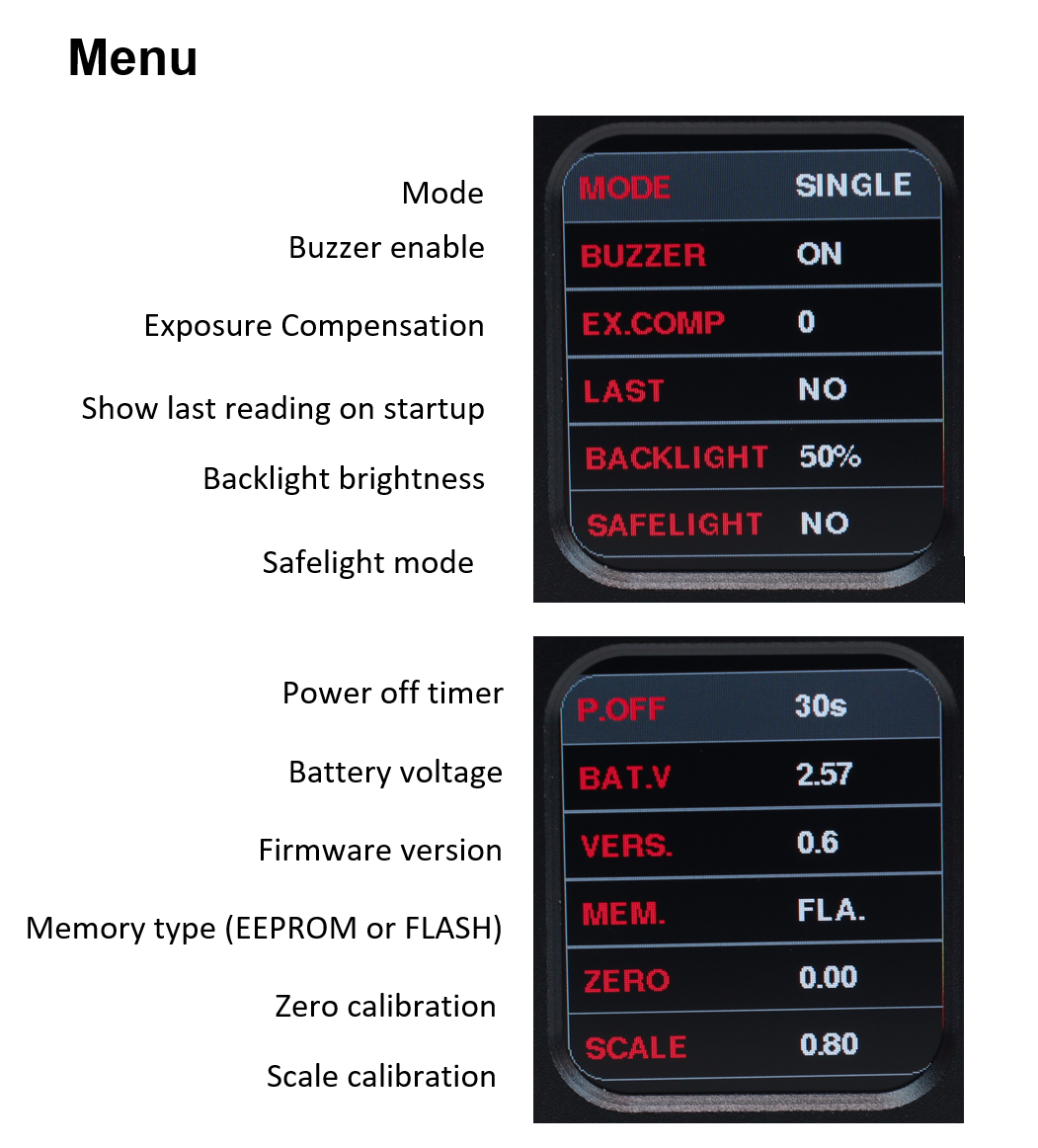

  • Simple controls and menu

  • UV exposure box / vacuum table output controls (relay control module sold separately)

  • Future accessory expansion port

  • 900mAh NiMH rechargeable battery

  • Exposure complete warning beeper

  • Safelight display mode

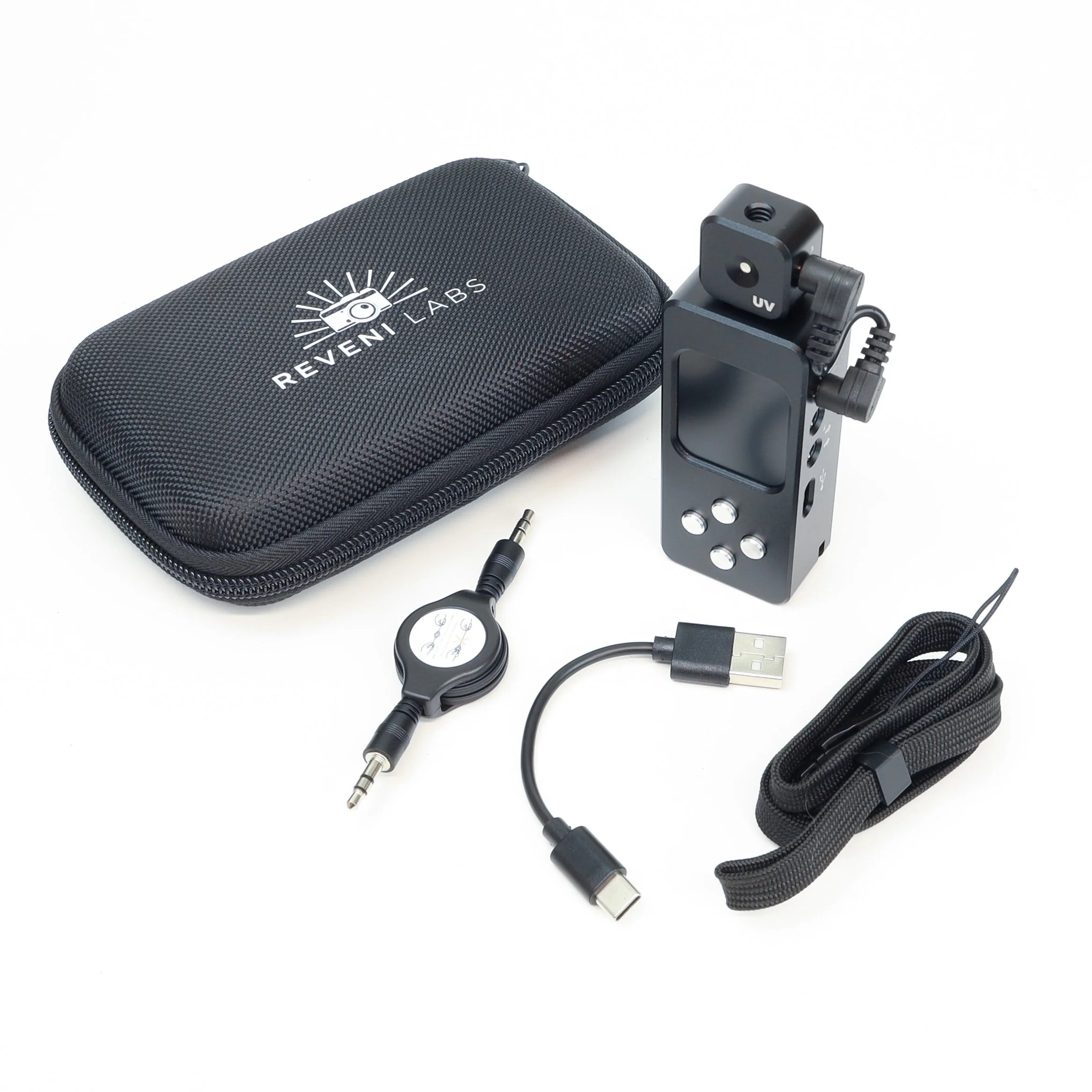

What’s Included:

  • ALTO Meter

  • UV sensor

  • Neck Strap w/ clip

  • USB C cable

  • 5cm 3.5mm cable

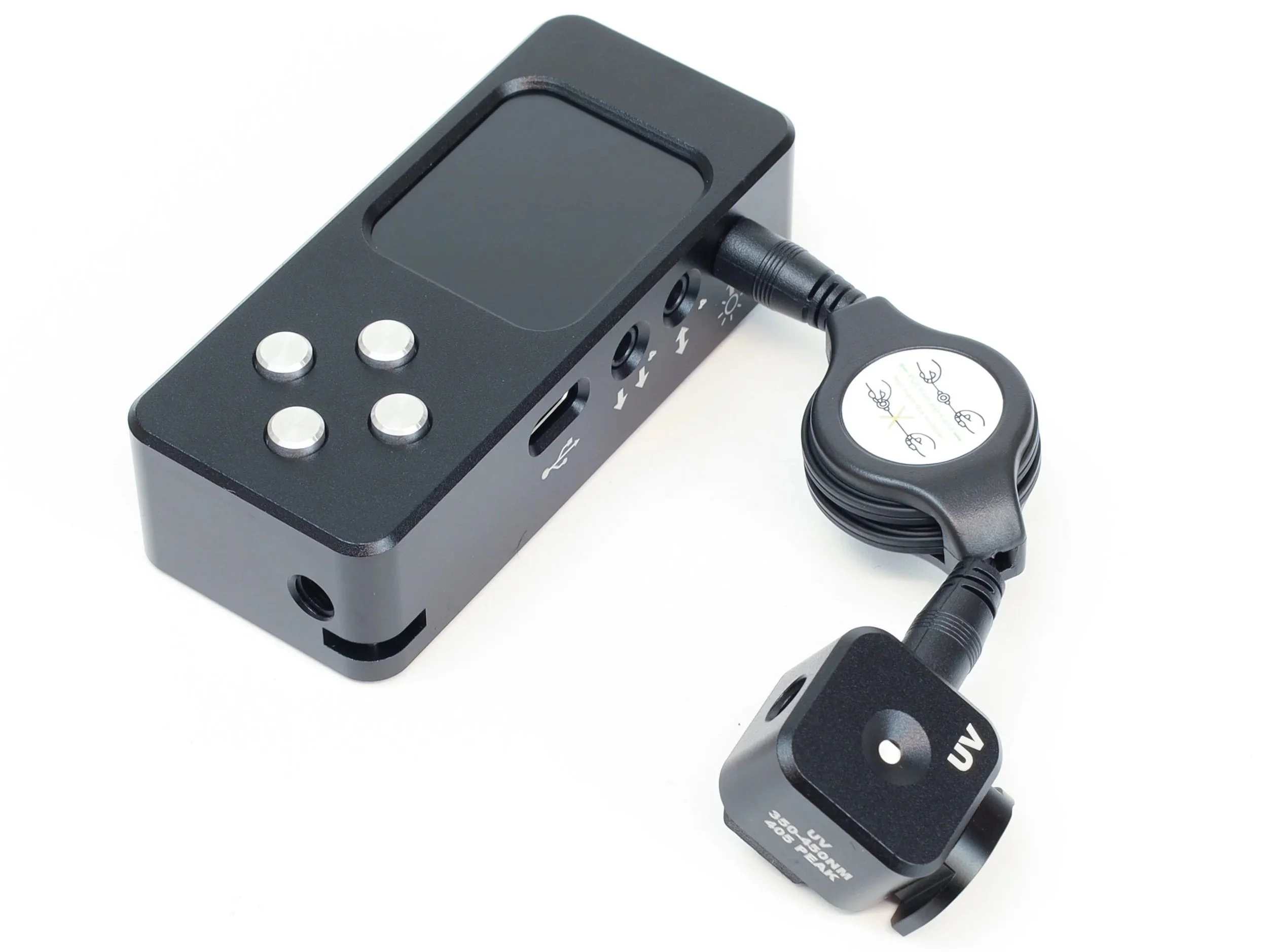

  • 70cm extendable cable

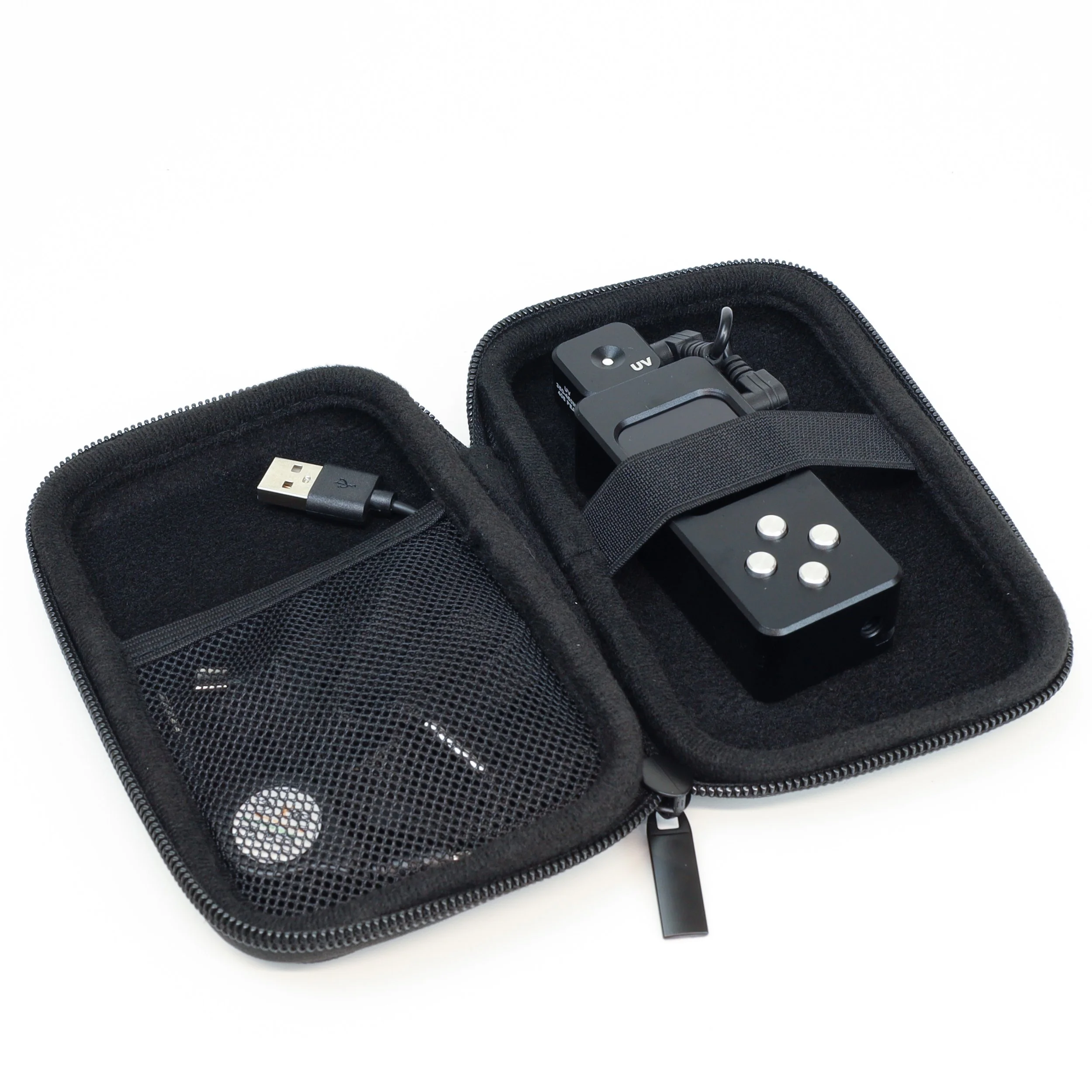

  • Hard shell zipper case

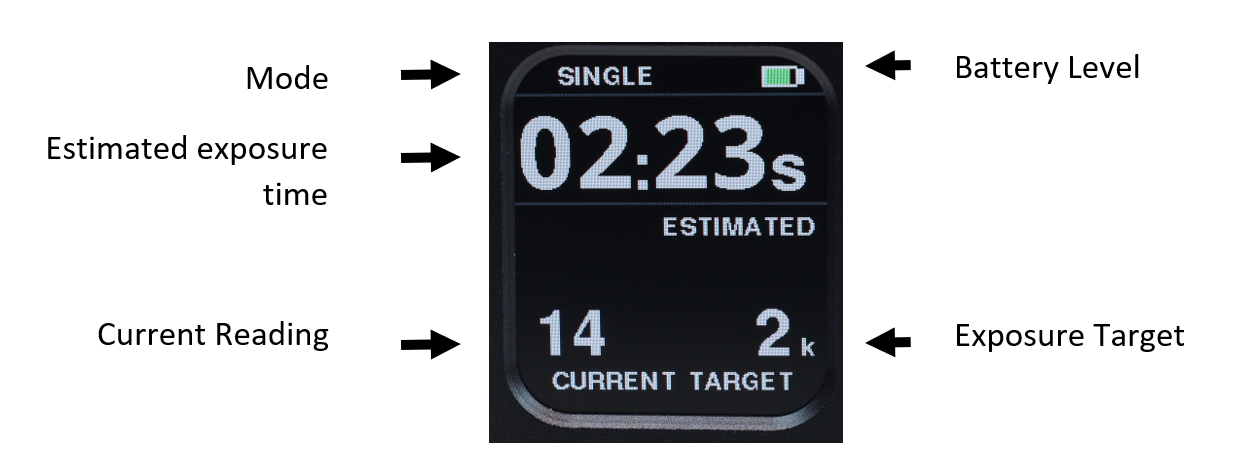

Single Mode

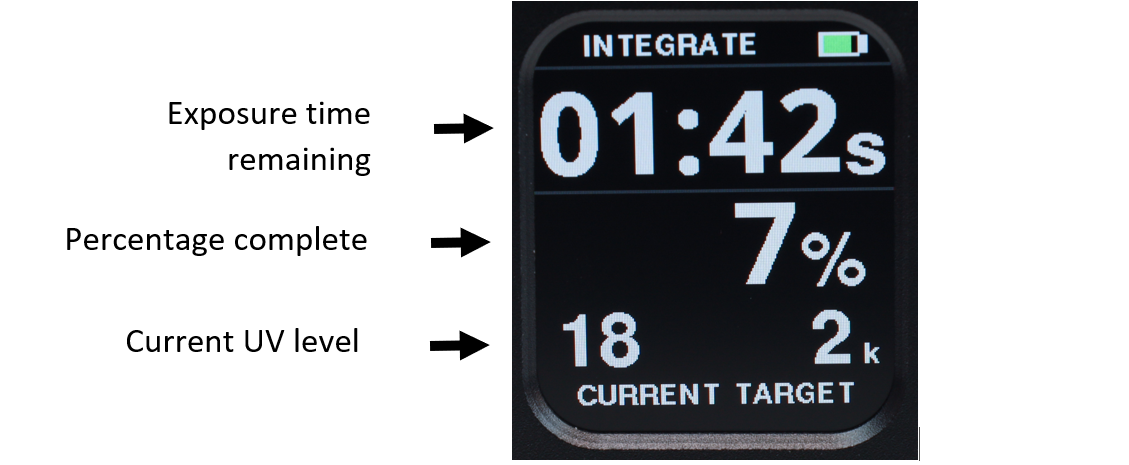

Integrate Mode

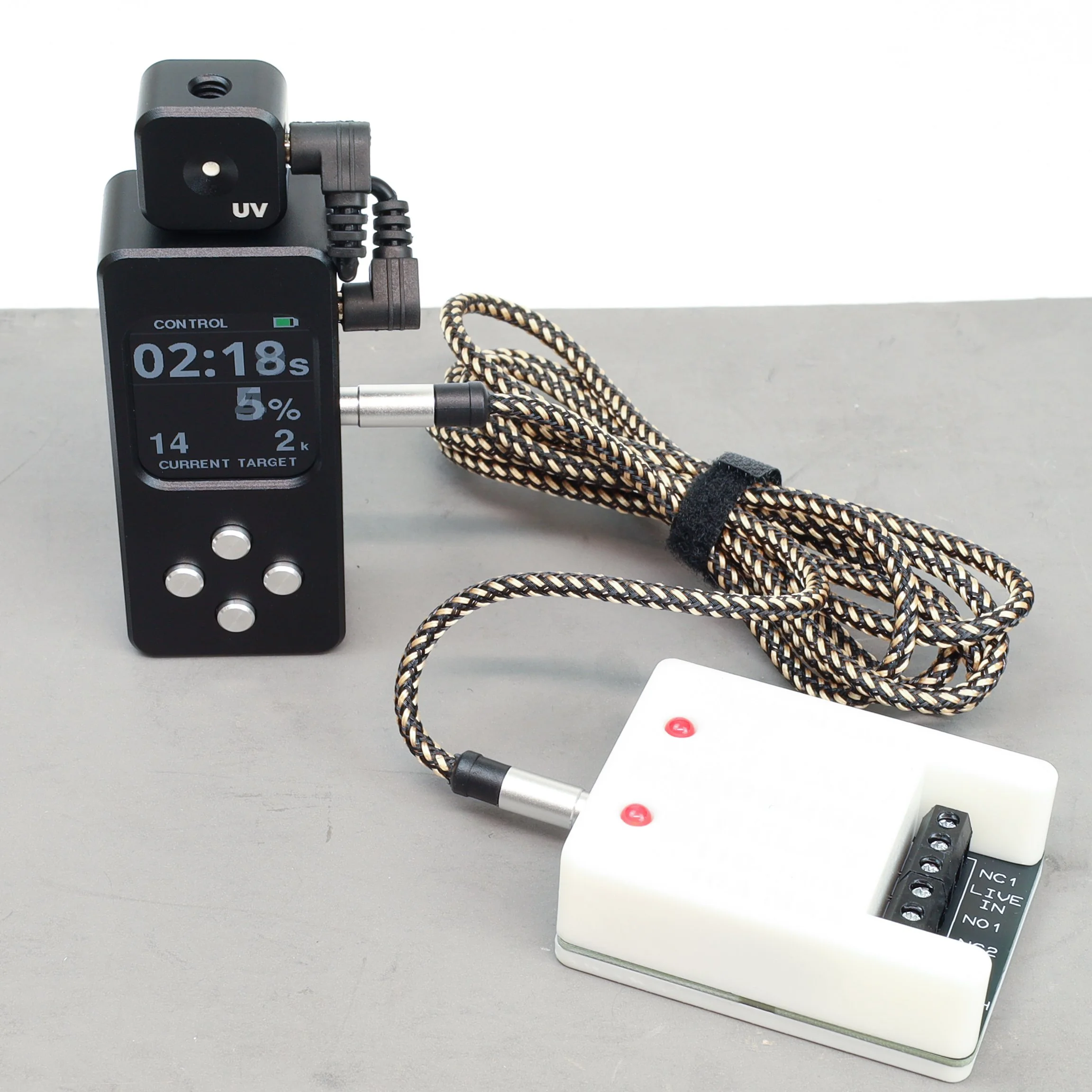

Control Mode - control UV exposure box + vacuum table (relay module sold separately)

Full Technical Specifications

UV measurement range: 0 – 250,000 uW/cm2

Spectral response: 350nm - 450nm (405nm peak)

Exposure Compensation: +/-3 stops in 1/3 stop increments, extended range in1 stop increments up to +20

Output Control Port: 5V supply (when USB C connected) + 2x current sinking MOSFET for controlling relay module (sold separately)

Battery: 900mAh NiMH internal rechargeable (user-replaceable)

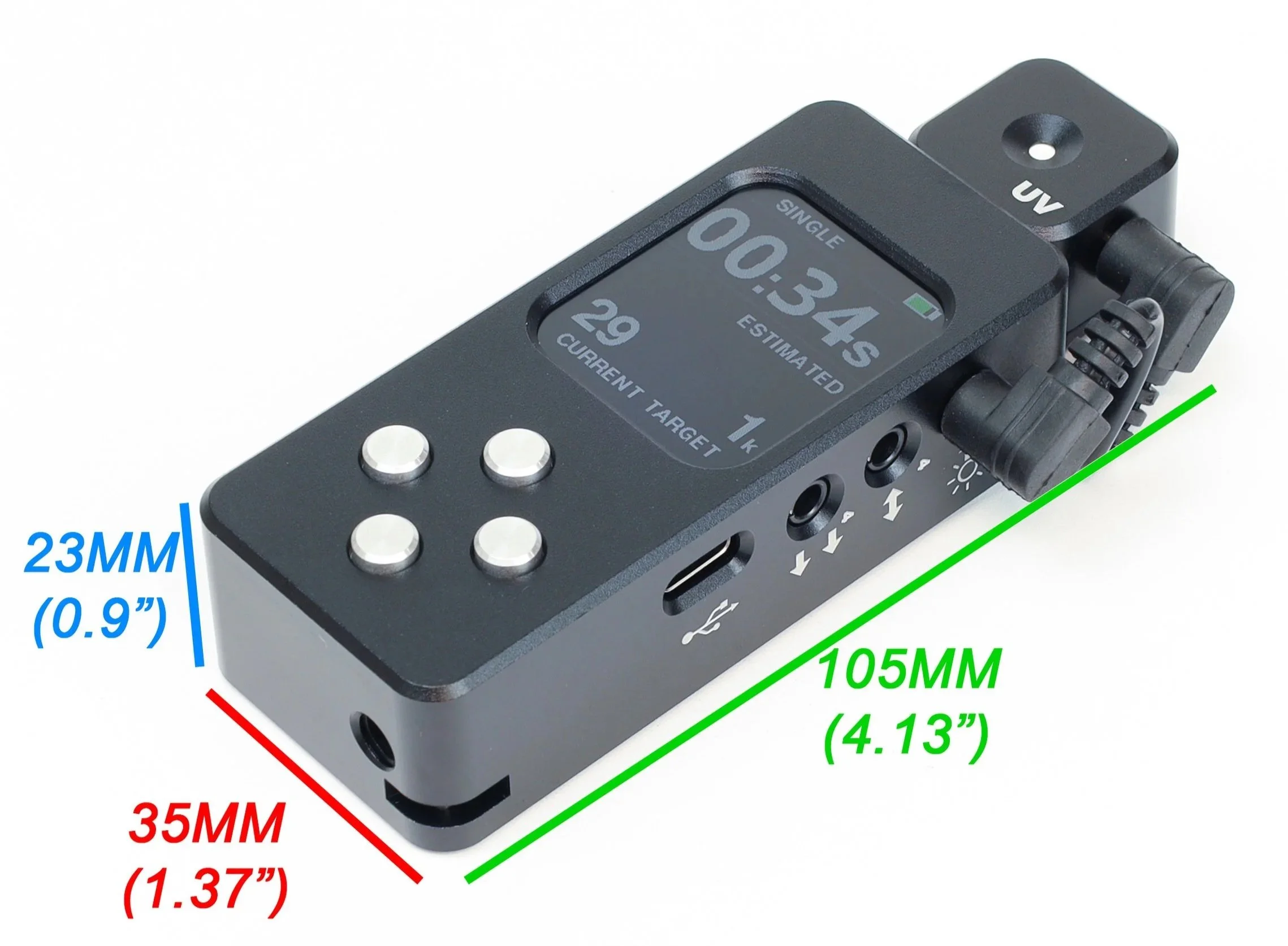

Dimensions: 105mm (4.13”) long, 35mm (1.37”) wide, 23mm (0.9”) thick, including sensor
